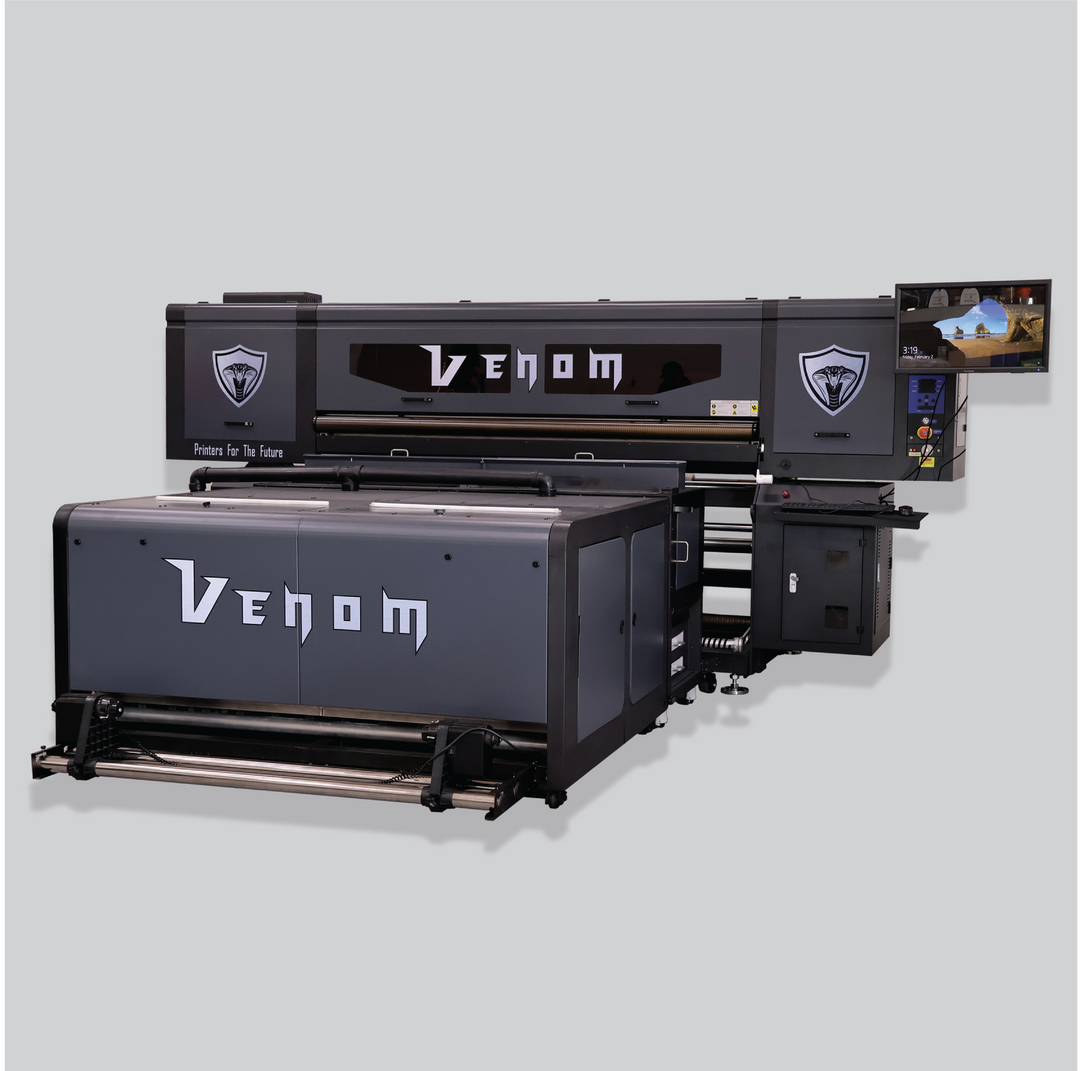

CobraFlex 63inch 15-Head Venom DTF Printer

The Ultimate High-Volume DTF Printing Solution

The CobraFlex CF-DTF-15H-Venom-Package is an industry-leading, high-speed direct-to-film (DTF) printer engineered for large-scale production. Designed with 15 I3200-A1 printheads, this powerhouse delivers exceptional precision, speed, and efficiency, making it the perfect solution for high-demand printing businesses. With an output of up to 2,700 sq/ft per hour, this state-of-the-art DTF printer sets new standards for speed, reliability, and color accuracy.

High-Speed Printing & Unparalleled Precision

• High-Speed Printing: 2,700 sq/ft per hour (360x1800 DPI, 6PASS)

• Print Width: Up to 63 inches

• Ink Type: Water-Based Ink

• Color Configuration:

  • 15-head CMYK + White (for ultra-rich color depth and vibrant prints)

• Print Media Compatibility: CobraFlex OEM DTF Hot/Cold Transfer Film

Cutting-Edge Technology & Seamless Workflow

Connectivity & Software

• Giga-Bit Ethernet Port & Wi-Fi for fast and reliable data transfer

• RIP Software: NeoStampa Inedit for professional color control

• Supported File Formats: JPG, PNG, TIFF, BMP, PDF, AI, EPS

• ICC Color Profile Management: Pre-installed and updated for precise color accuracy

High-Performance Computing

• Operating System: Windows 11 Pro 64-bit

• Storage: 921GB SSD

• RAM: 64GB

• Processor: Intel® Core™ i7-9750H @ 3.00GHz

Advanced Heating & Material Handling

• Auto-Feeding & Take-up System for continuous high-volume production

• Shaker Dryer Heat Method: 3-stage heating (Front/Middle/Rear)

• Shaker Dryer Control Panel: PLC control system (Multi-language support available)

Shaker Dryer Advantages

• Auto-recycling powder system for improved efficiency

• Air cooling function to maintain optimal printing conditions

Optimized for Large-Scale Production

Ideal Working Conditions

• Temperature: 60°F - 80°F

• Humidity: 40% - 60%

Power Requirements

• Printer Power Supply: 220V, 50/60Hz, 80A

• Shaker Dryer Power: 220V, 50/60Hz, 30A

Robust Design & Dimensions

Printer & Dryer Dimensions

• Printer Size: 146.65” D x 57.28” W x 71.26” H

• Printer Crate Size: 162” L x 58” W x 83” H (1450 lbs)

• Shaker/Dryer Size: 85.03” D x 82.28” W x 38.07” H

• Shaker/Dryer Crate Size: 95” L x 82” W x 54” H (1050 lbs)

Elevate Your DTF Printing Business with the CobraFlex CF-DTF-15H-Venom

Built for speed, efficiency, and high-quality output, the CobraFlex CF-DTF-15H-Venom-Package is designed to meet the needs of high-volume print shops. Whether you require exceptional print quality, unparalleled speed, or scalability, this 15-head DTF printing system is the ultimate production machine.
